engine valve tester

Posted on by Peyman Yousefi

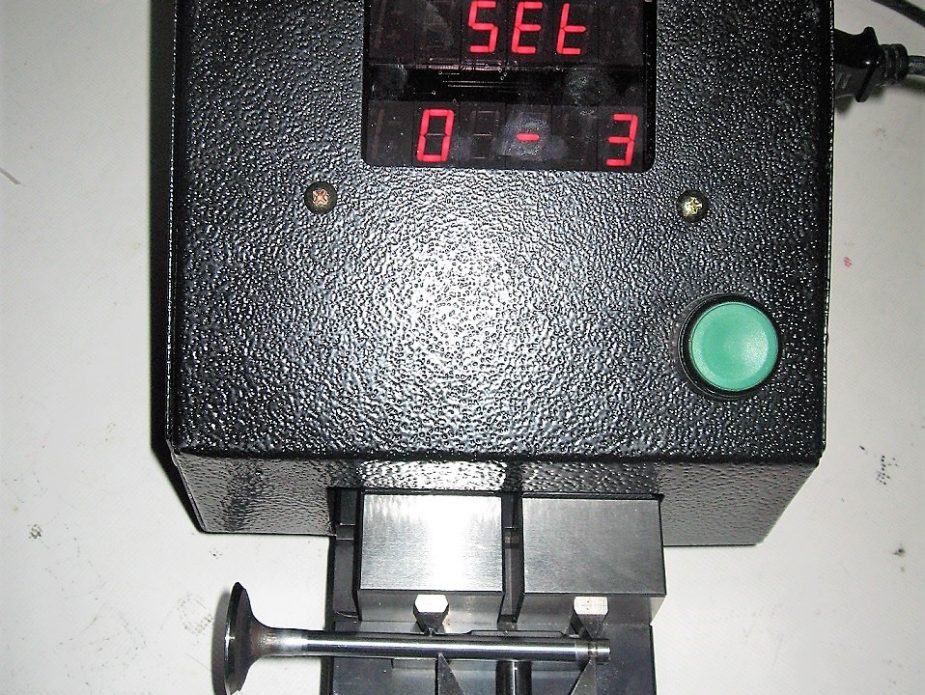

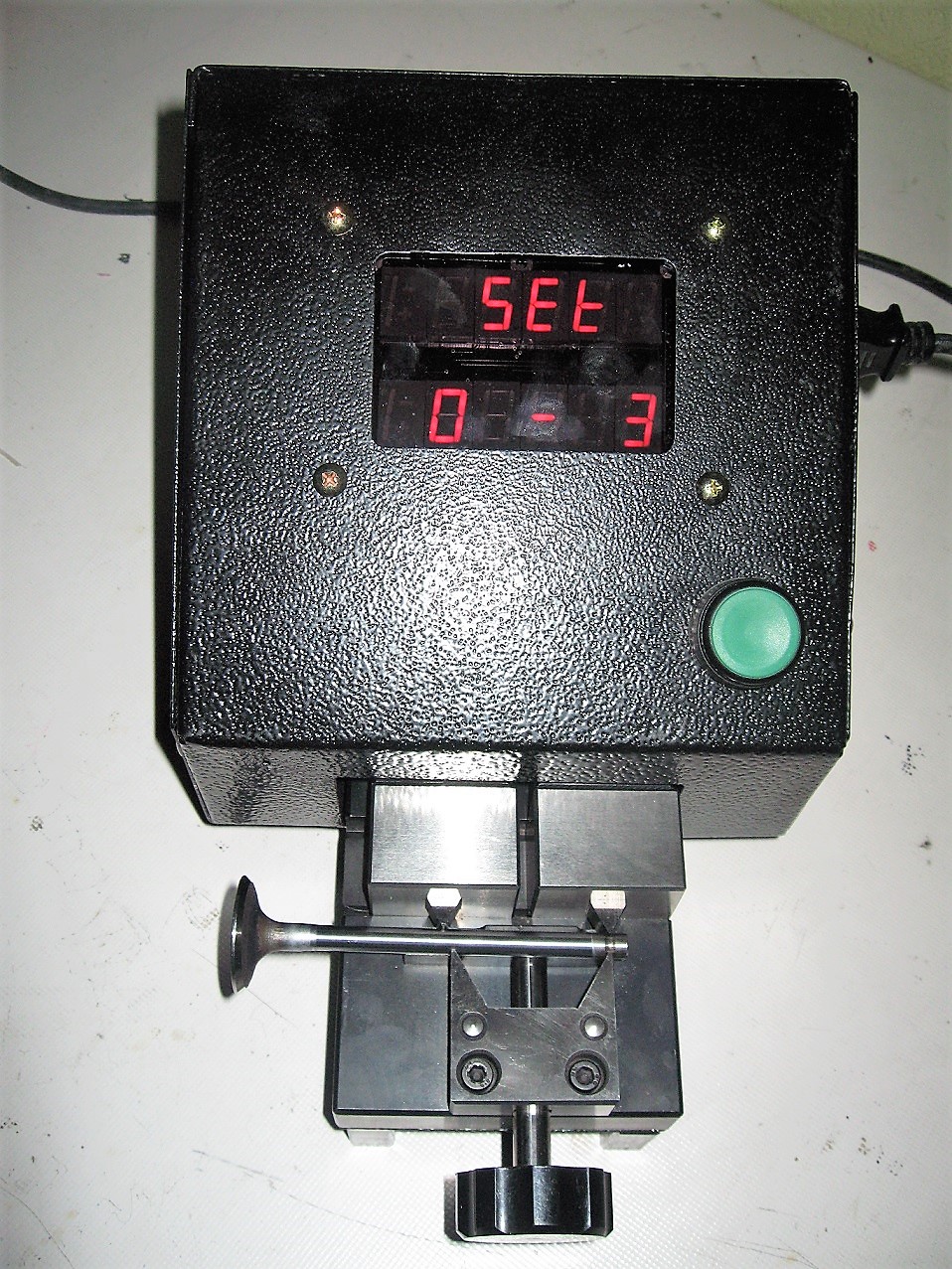

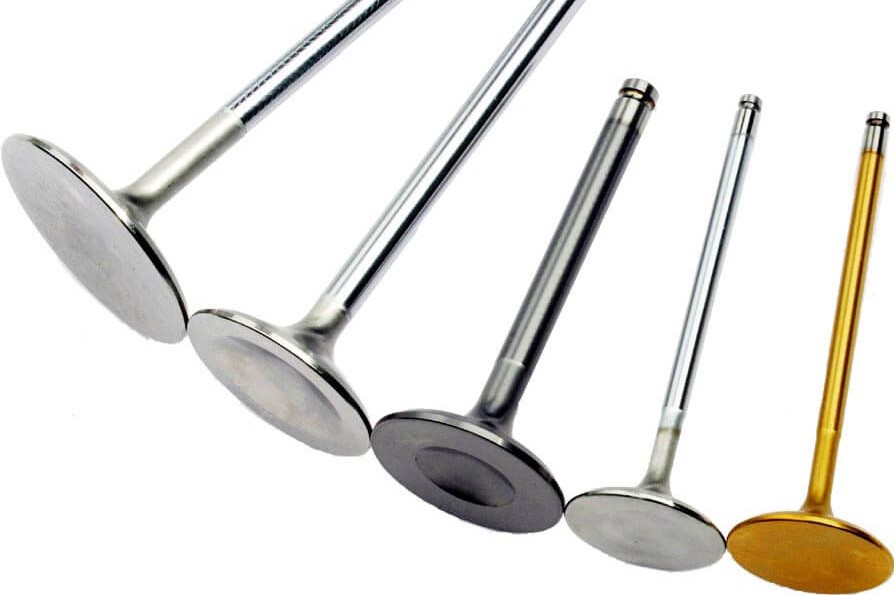

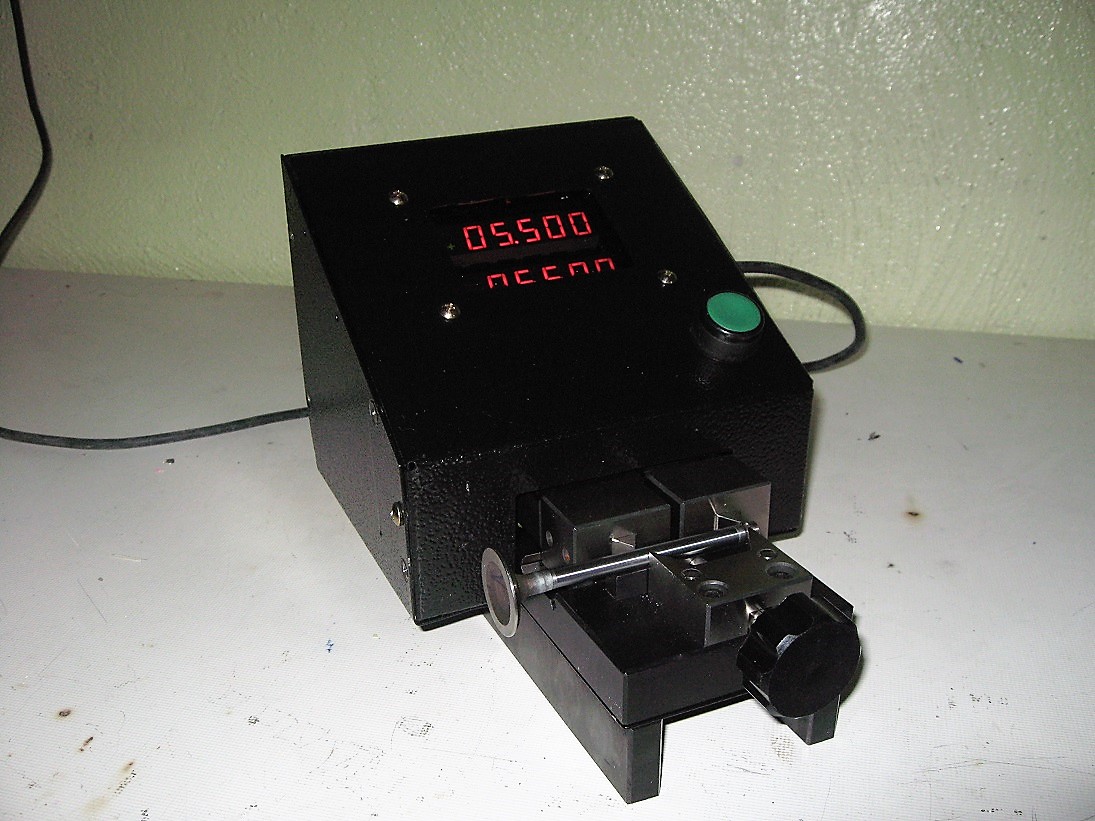

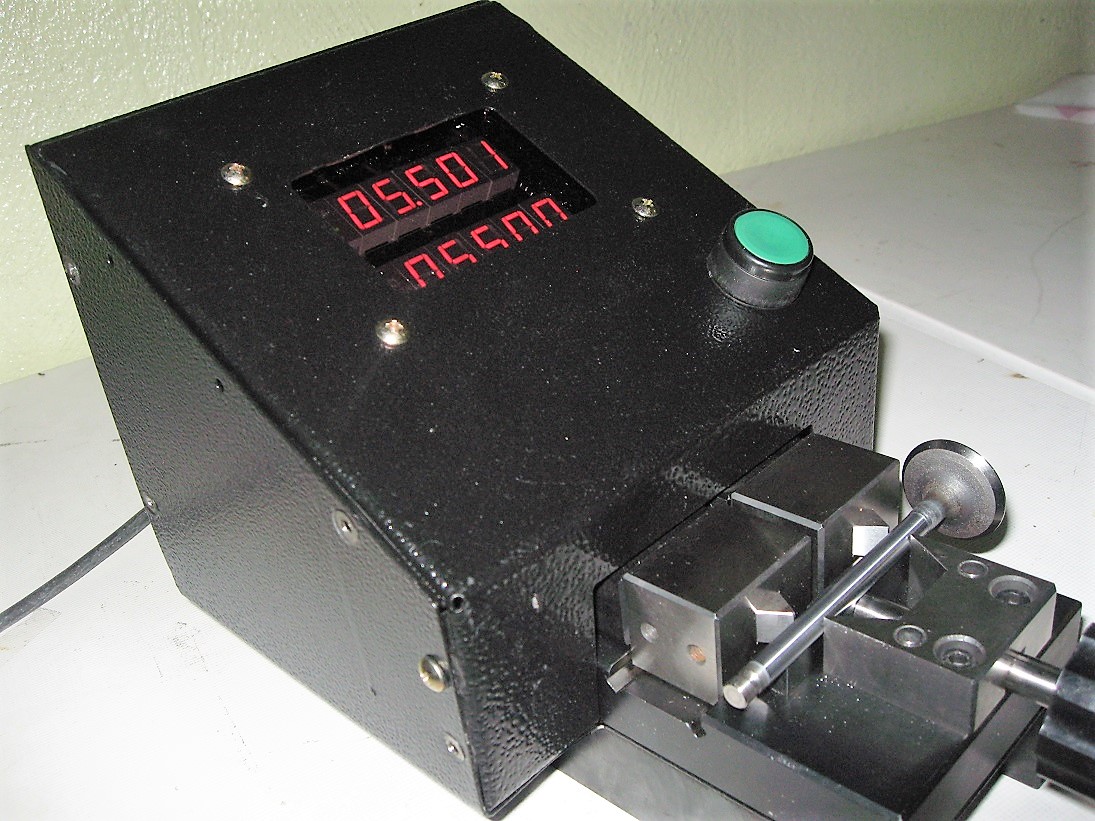

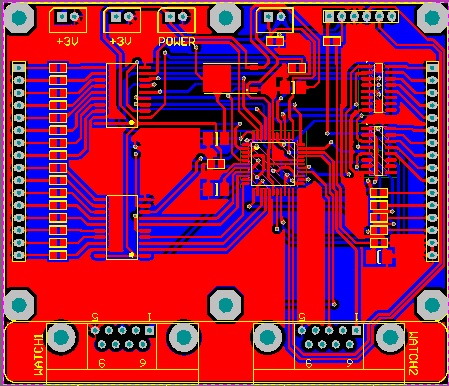

This device was designed to check both the roundness and diameter of the shaft for engine valves. Inside of this device consist of two high-quality LVDT, 16-bit high accuracy Analog Device ADC and a PIC family microcontroller which gave us a measurement with 1 micron meter accuracy and resolution which was amazing.
